ANCHOR BOLT
SOCKET BOLT HEAD
- Features
- 1) Ideal for architectural hanging features.
- 2) Simple and secure installation
- 3) Removable
- 4) M12 Internal thread
- 5) No expansion
Description

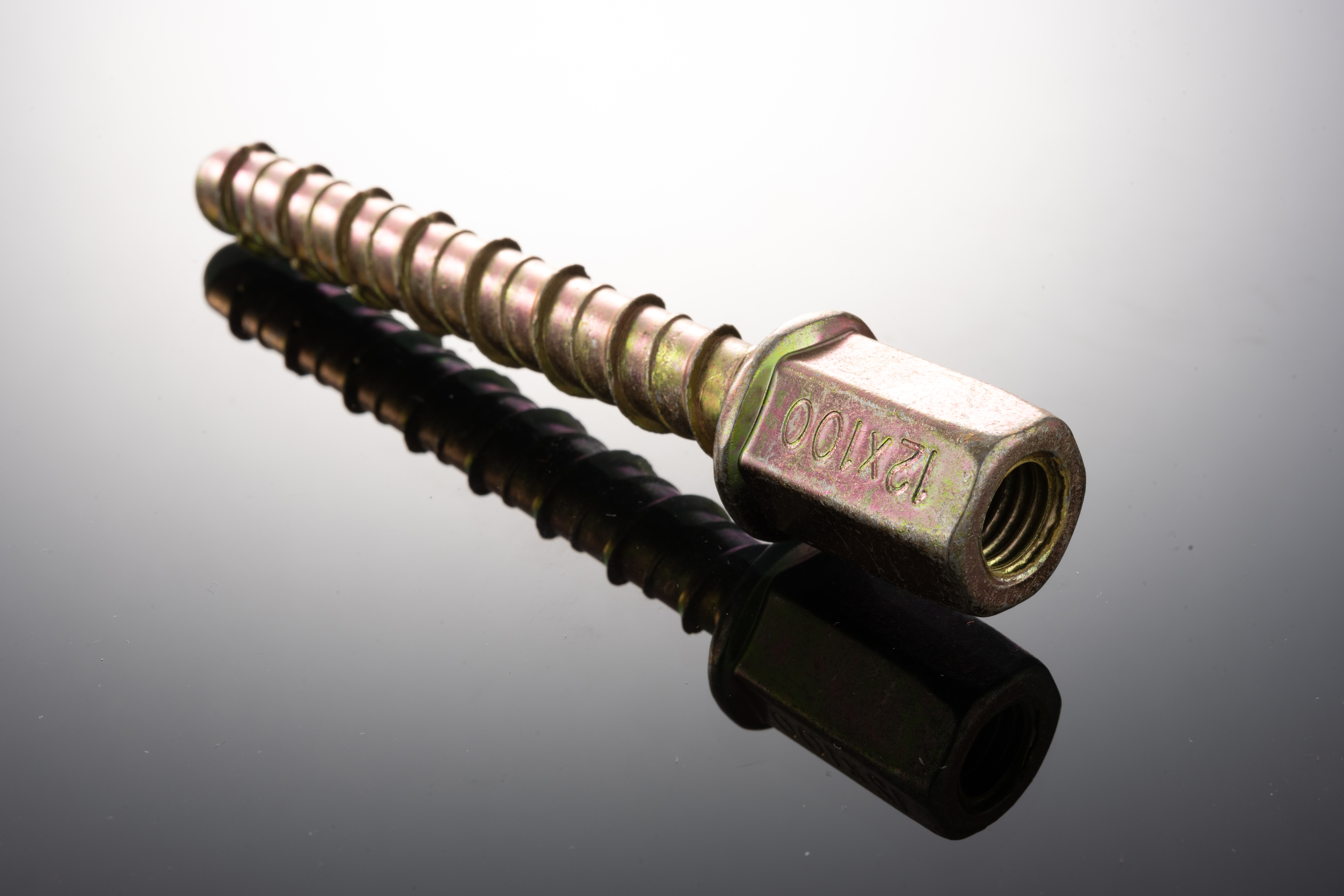

A Socket head self-tapping anchor which cuts its own thread in the base material. The anchor is ideal for either temporary or permanent installation. Suitable for heavy loads and solid concrete, bricks, stone, and structural anchorage.SIZE LIST
(mm)
| SIZE Ø (mm) |
Length (mm) |
Drill Bit Dia. (mm) |
Thread Dia. (mm) |
INTERNAL Thread (mm) |
|---|---|---|---|---|
| M12 | 100 | 12 | 14 | 12 |
| M12 | 150 | 12 | 14 | 12 |
- Material
- Carbon steel
- Finish
- Zinc plated or Yellow Zinc plated in Cr3+
- Mechanically galvanized 20-25μ or 40-45μ
