ANCHOR BOLT
EYE HEAD
- Features
- 1) Apply for using with rope, electric wire, hook and chain.
- 2) Suspensions from concrete ceilings
- 3) Simple and time-saving installation
- 4) No expansion
Description
An EYE head self-tapping anchor which cuts its own thread in the base material. The anchor is ideal for either temporary or permanent installation. Suitable for heavy loads and solid concrete, bricks, stone, and structural anchorage.

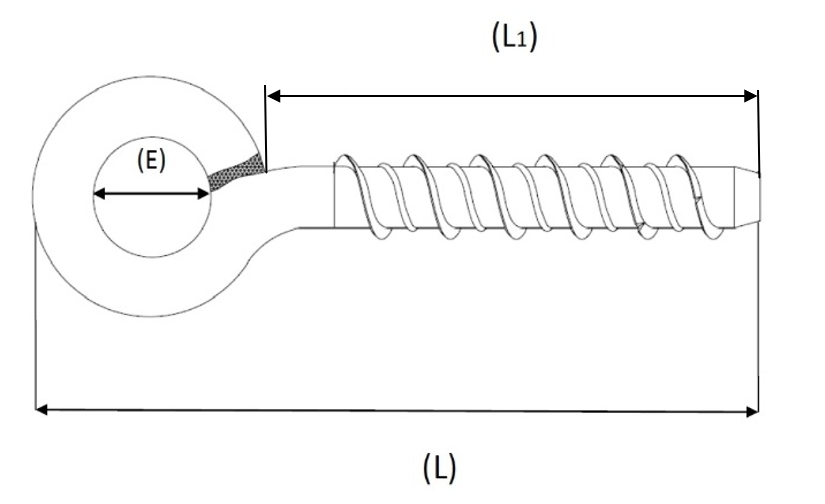

SIZE LIST
(mm)
| SIZE Ø (mm) |
Length (mm) |
Drill Bit Dia. (mm) |
Thread Dia. (mm) |
L1 (mm) |
E (mm) |
|---|---|---|---|---|---|
| M6 | 80 | 6 | 8 | 45 | 13 |
| M8 | 100 | 8 | 10 | 55 | 14 |
| M10 | 110 | 10 | 12 | 65 | 17 |
| M12 | 120 | 12 | 14 | 75 | 22 |
- Material
- Carbon steel
- Finish
- Zinc plated or Yellow Zinc plated in Cr3+
- Mechanically galvanized 20-25μ or 40-45μ
