ANCHOR BOLT

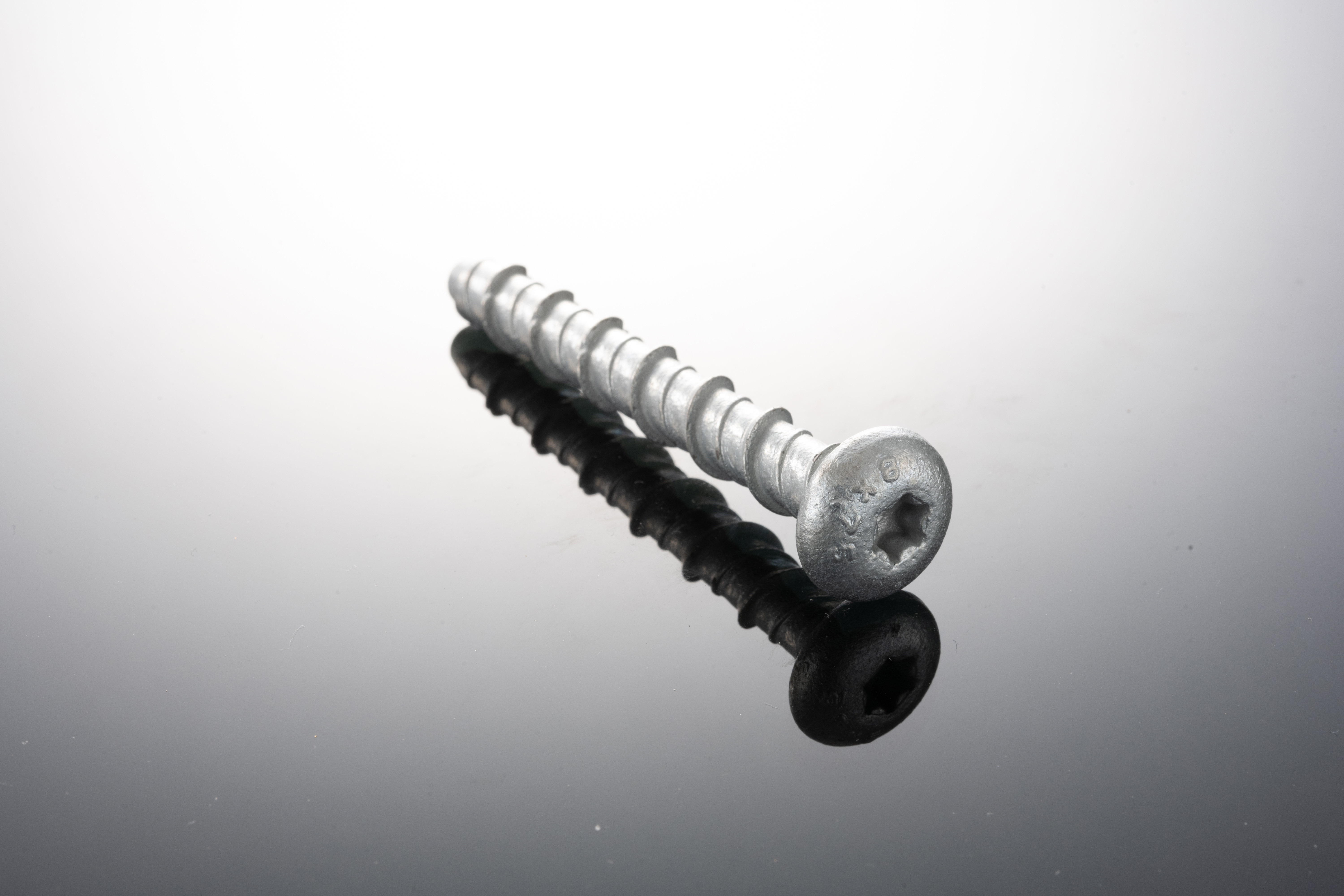

DOME HEAD WITH A TORX DRIVE HEAD
- Features
- 1) Close edge distance install
- 2) Quick and simple to install
- 3) Removable
- 4) No expansion
Description
A Dome head self-tapping anchor which cuts its own thread in the base material. The anchor is ideal for either temporary or permanent installation. Suitable for heavy loads and solid concrete, bricks, stone, and structural anchorage.SIZE LIST
(mm)
| SIZE Ø (mm) |
Length (mm) |
Drill Bit Dia. (mm) |
Thread Dia. (mm) |
INTERNAL TORX (mm) |
Embedment Depth (mm) |
|---|---|---|---|---|---|
| M6 | 65 | 6 | 8 | T-30 | 30 |
| 75 | 6 | 8 | T-30 | 30 | |
| 100 | 6 | 8 | T-30 | 30 | |
| M8 | 60 | 8 | 10 | T-40 | 40 |
| 75 | 8 | 10 | T-40 | 40 | |
| 100 | 8 | 10 | T-40 | 40 | |
| M10 | 75 | 10 | 12 | T-50 | 50 |
| 100 | 10 | 12 | T-50 | 50 | |
| 150 | 10 | 12 | T-50 | 50 |
- Material
- Carbon steel
- Finish
- Zinc plated or Yellow Zinc plated in Cr3+
- Mechanically galvanized 20-25μ or 40-45μ
