ANCHOR BOLT

HEX HEAD

Features
1) Fast and easy to install
2) Suitable for various materials
3) Removable
4) No expansion

Description

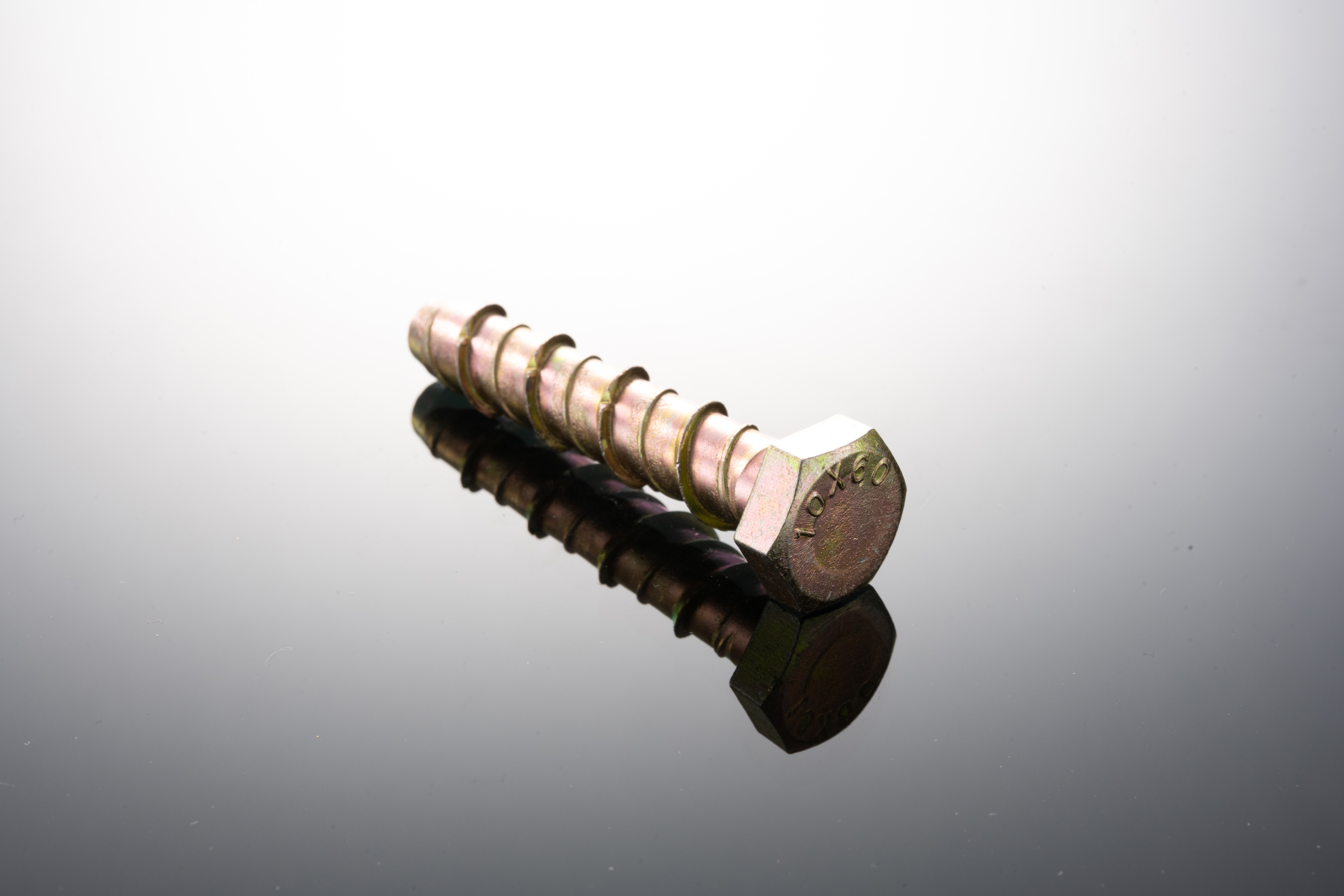

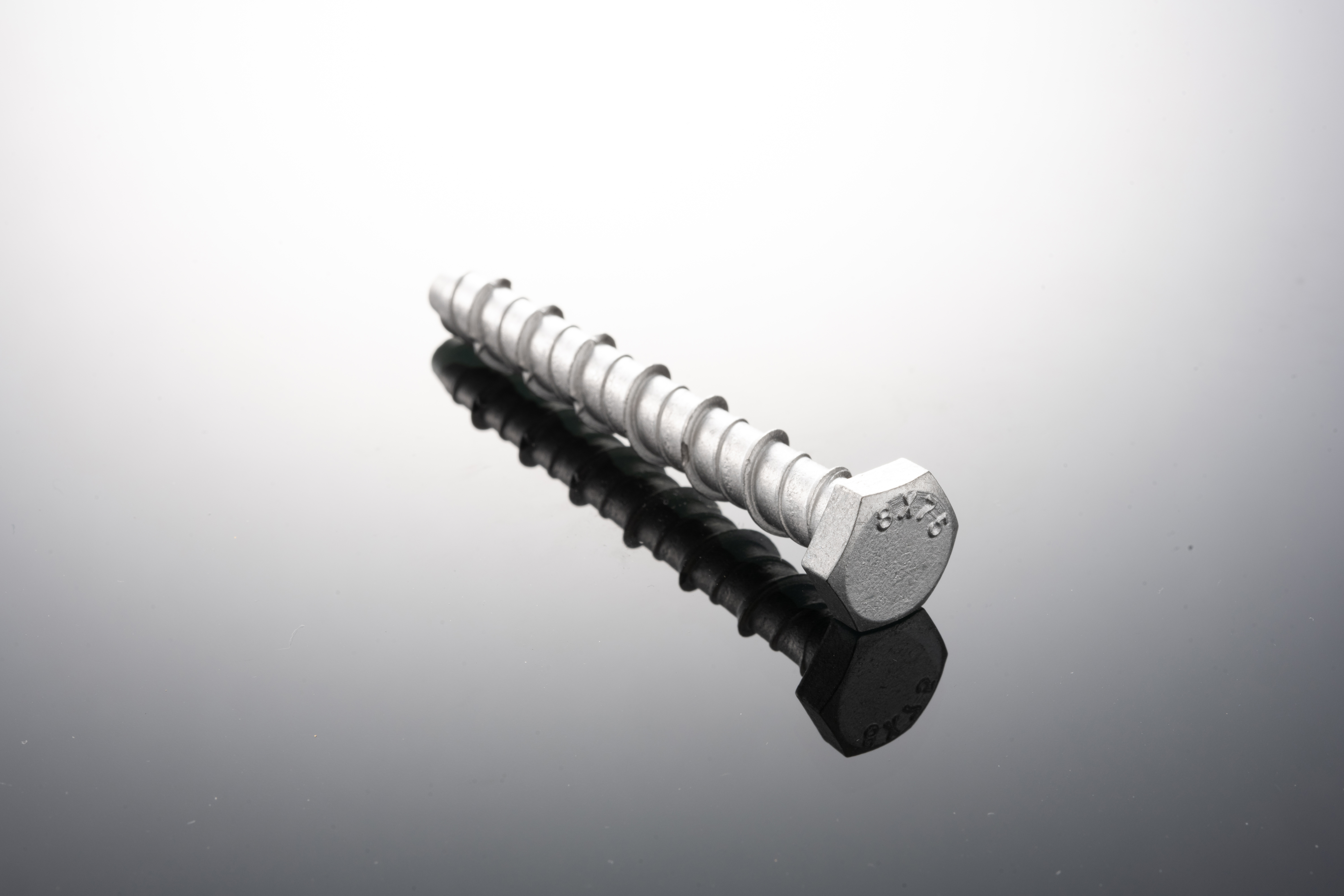

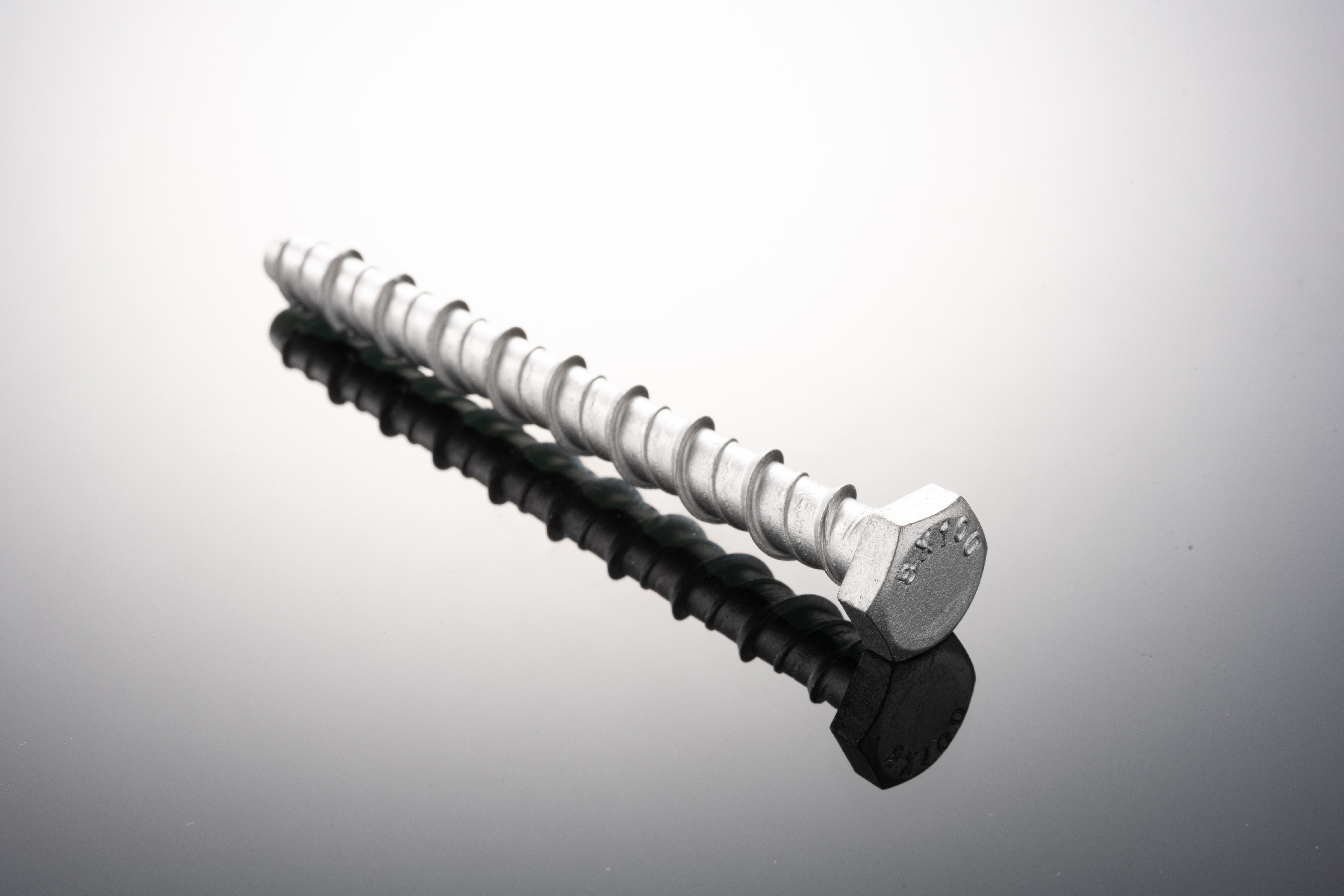

A Hex head self-tapping anchor which cuts its own thread in the base material. The anchor is ideal for either temporary or permanent installation. Suitable for heavy loads and solid concrete, bricks, stone, and structural anchorage.

 Applications
  • Masonry
  • Solid or hollow concrete
  • Brick or marble or stone
  • Beams or fencing or handrail
  • Structural anchorage
  • Factory equipment installation
  • Permanent and temporary installation
Add Inquiry (0)

SIZE LIST

(mm)
SIZE  Ø
(mm)		 Length
(mm)		 Drill Bit Dia.
(mm)		 Thread Dia.
(mm)		 Embedment Depth
(mm)
M8 60 8 10 40
75 8 10 40
100 8 10 40
130 8 10 40
150 8 10 40
M10 60 10 12 50
75 10 12 50
100 10 12 50
120 10 12 50
130 10 12 50
150 10 12 50
M12 60 12 14 60
75 12 14 60
100 12 14 60
120 12 14 60
130 12 14 60
150 12 14 60
200 12 14 60
M16 100 16 18 80
150 16 18 80

Material
Carbon steel
Finish
Zinc plated or Yellow Zinc plated in Cr3+
Mechanically galvanized 20-25μ or 40-45μ
